This is the manual I have for 1994-1996 Vmax 500's & 600's, part # LIT-12618-VX-01. If there are any additional pages you need just let me know and I will post them on this site.

Click on thumbnails below to see larger image, pages will open in a new window.

Jetting Chart for 1994-95 Vmax 600           Jetting Chart for 1996 Vmax 600

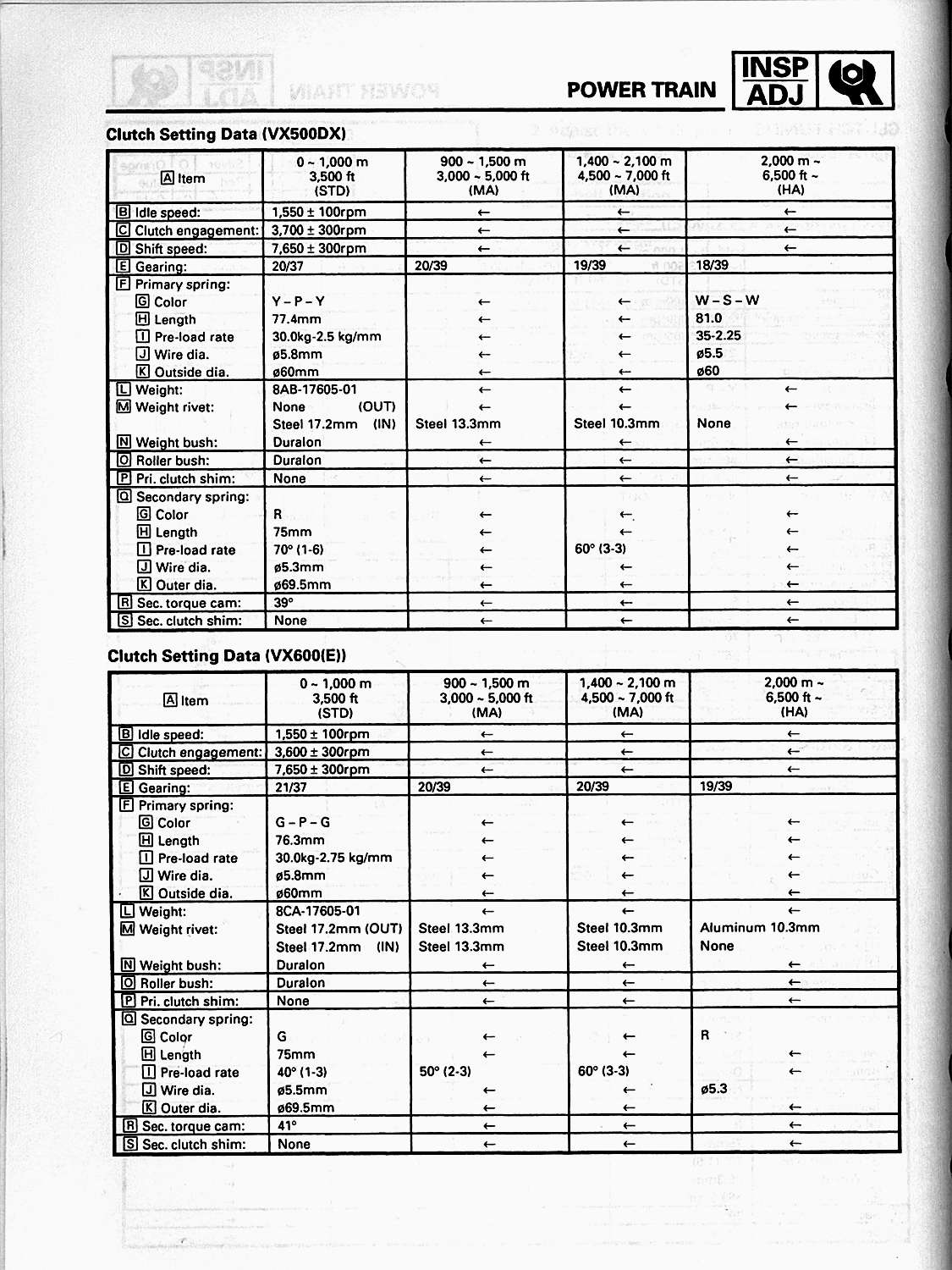

Clutching chart for 1994 Vmax 600             Clutching charts for 1995 Vmax 500 & 600

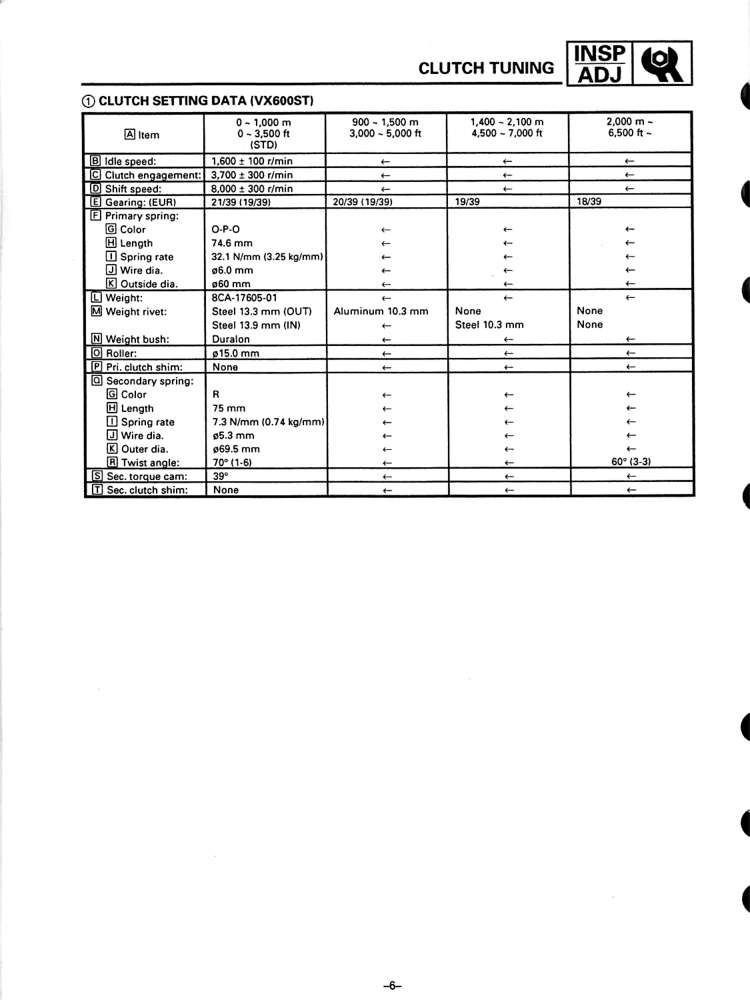

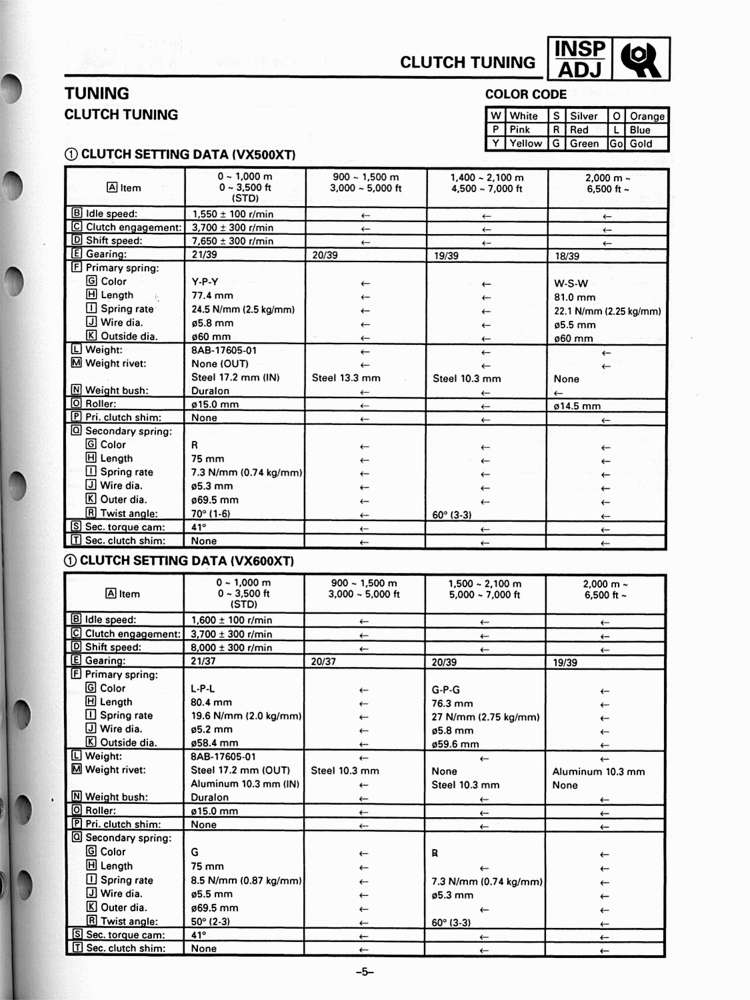

Clutching charts for 1996 Vmax 500 & 600

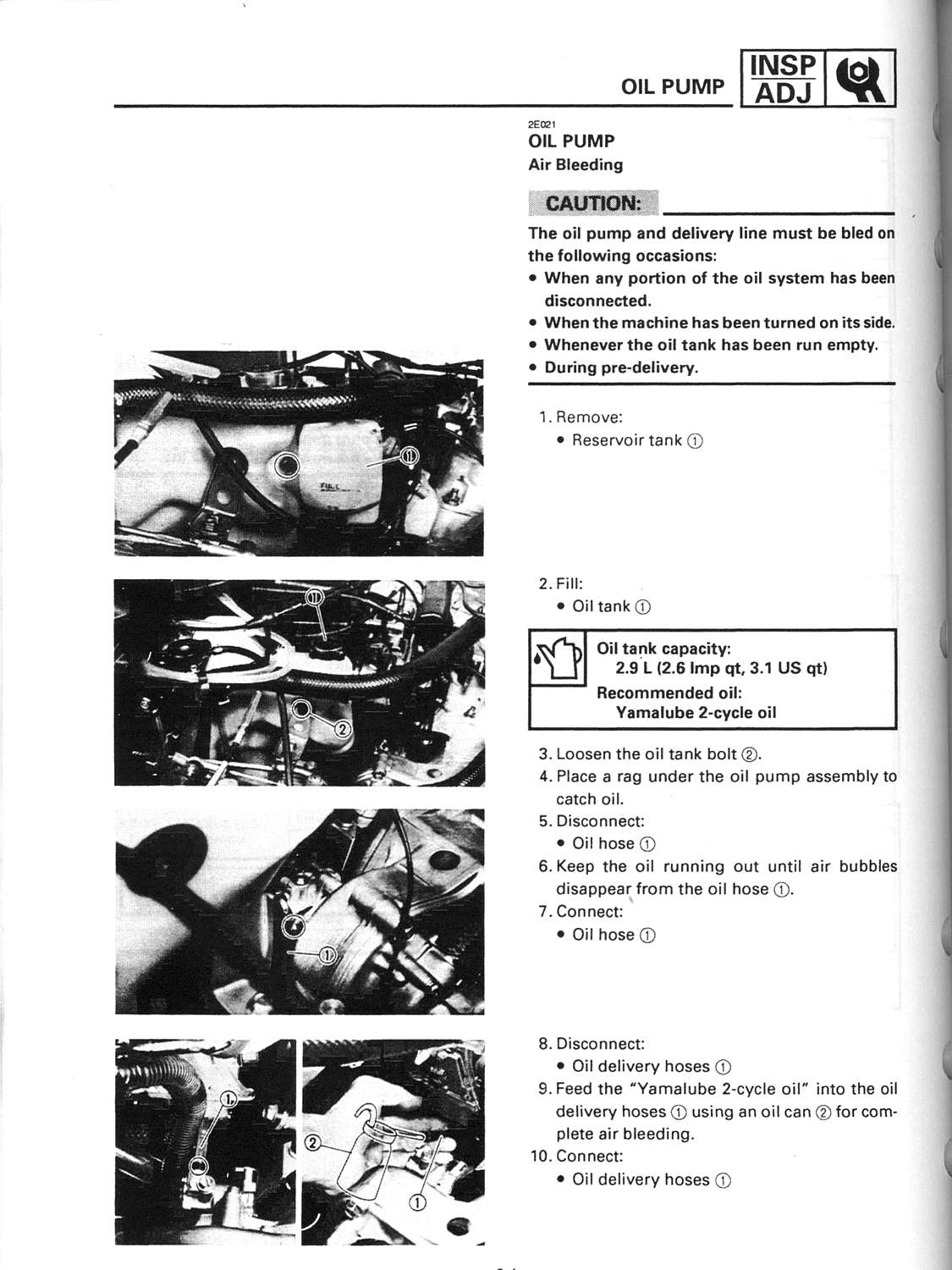

Oil pump bleeding and adjustment for 1994 Vmax     Oil Pump adjustment for 1995 Vmax

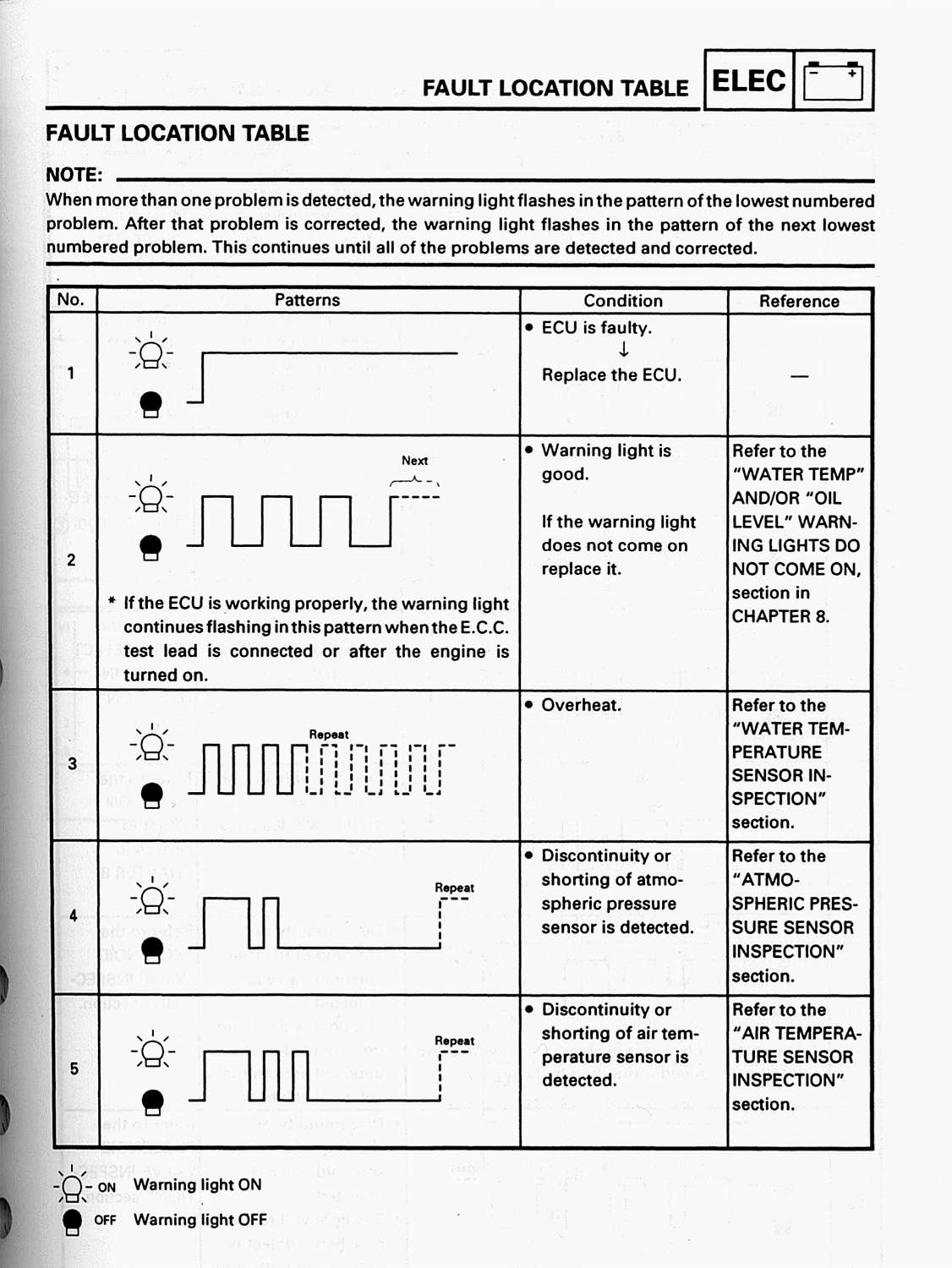

Fault location table.                                      1994 Vmax wiring diagram
